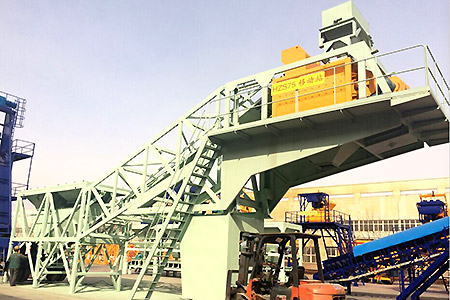

YHZS75 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the advantage of many models in China and overseas and the advanced technology, combing the experience of HAMAC Group in the past years. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailerized chassis. It has the feature of instant trailing, instant stop, reasonable structure, well function, reliable working, convenient operation, accurate scale, particularly suitable for moving sites and construction site like road, bridge, dam, airport.
Clients' Working Site
The modular design of without foundation and commissioning enables the modular mobile concrete mixing plant convenient movement and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. It is an ideal choice for engineering.
Global Case
HZS35 Concrete Batching Plant in NigeriaCOUNTRY : Nigeria
HZS50 Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
HZS35 Small Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
Advantage
1. Adopting module structure, designed as per the loading of container standard. All modules are in one trailing unit. Easy for installation and disassembly. Fast for moving.
2. Main mixing unit is JS1500 double-shaft, forced concrete mixing mixer, with good mixing quality, high production efficiency. Perfect mixing can be done within ideal time period for dry-hard, half-dry-hard, plastic and concrete with any mixing ratio.
3. All scaling elements and control elements of scaling unit are imported elements and controlled by computer, guaranteeing completely accurate scale and stable function.
4. Platform or ladder is equipped to each part needing maintenance and repairing. Good for maintenance.
5. The whole system adopts complete automatic system via computer, with dynamic panel display, to show clearly of the running of each part. Visualized monitor interface provides clear and accurate observing to the site working procedure. Table or list can be print out.
6. Electrical control system adopts import elements, providing a stable and powerful function. Automatic test for the abnormal working condition, Word, sound, light alarm, easy and good for the maintenance and trouble shooting.
Specification
| YHZS75 Mobile small concrete batching plant main specification | |
| Model | YHZS75 |
| Theoretical capacity | 75m3/h |
| Mixing unit | JS1500 |
| Max. aggregate size | ≥80mm |
| Size of aggregate silo | 4×13m3 |
| Weighing and conveying of aggregate | Weighingd and lifted by belt |
| Weighing of aggregate | 3750Kg ±2% |
| Weighing of cement | 900Kg ±1% |
| Weighing of water | 450Kg ±1% |
| Weighing of additive agent | 45Kg ±1% |
| Power of whole unit | 120Kw |
| Weight of whole unit | 27T |
| Transport way | Semi-trailer |
| Outline (working statue: length×width×height) | 18.1m×3.6m×8.2m |
| Outline (transport statue: length×width×height) | 18.6m×2.4m×4.35m |
| Discharging height | 3.8 m |
| Powder silo (option) | Depends on the customer. Quantity and capacity are flexible. |
| Cement screw (option) | A φ273 screw is equipped to each powder silo |
