- How many different sizes aggregate do you want to mix?
- How big is your working area? Do you have a limit for the working area?
- How many cubic meters concrete do you want to produce per hour?
- How is the environment protection at your local site? Is it strict or not?
- Will you use the concrete at the working site or you will sell it to different clients?
If you know the above information, please contact us by email or online service and leave your contact information. Our professional salesman will contact you within 24 hours to discuss about the solution with you.
Concrete Mixer with Pump
JS series Concrete Mixer
JZ series Concrete Mixer
European Tech.Twin shaft Concrete Mixer
Introduction
The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering.

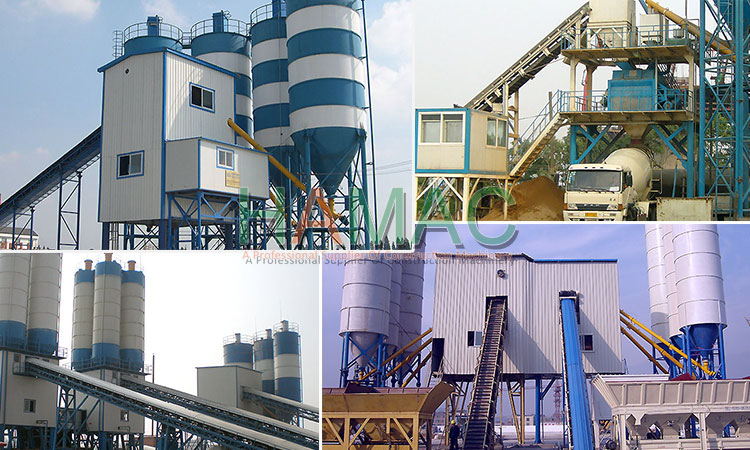

Clients' Working Site
Performance
1. Adopt twin-shaft compulsory concrete mixer as the assorted mixer, which has obvious characteristics like fast mixing, wide mixing range and good quality concrete, etc to satisfy the customers' requirement.
2. Adopt the technology of “click to supplement”, to ensure the accuracy of dynamic measurement no more than ±1%.
3. Adopt additive weighing scale pneumatic conveying equipment, applied for national patent, to measure and convey additives, which completely avoid the quality accident caused by the failure of additive system.
4. Assemble two suits operating devices(touch-screen and computer), and can be operated manually, semi-automatically and automatically, which ensures the working reliability.
5. The fully accounted concrete technology enable perfect functions like: unique ratio deposit, self compensation of aggregates drop, scale-owing, alarming and revising of over-scale, on-line modifying formula, data saving and query, and report-print and so on.
6. Use pre-debugged air plugs to ensure quick installation and commissioning.
Specification
| Item | Type | |||
| YHZS60 | YHZS90 | YHZS120 | YHZS180 | |
| Theoretical Productivity(m³/h) | 60 | 90 | 120 | 180 |
| Mixer | JS1500/1000 | JS2250/1500 | JS3000/2000 | JS4500/3000 |
| Batching System | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Discharging Height(mm) | 4000 | 4000 | 4200 | 4200 |
| The Max. Diameter of the Aggregates(mm) | 60(80) | 60(80) | 60(80) | 60(80) |
| Transportation Dimension(L×W×H)mm | 17500X2300X4300 | / | / | / |
