- How many cubic meters concrete do you want to produce per hour?
- Do you need to move it from place to place?
- How is your requirement for the concrete? A high quality concrete or just for simple projects?
If you know the above information, please contact us by email or online service and leave your contact information. Our professional salesman will contact you within 24 hours to discuss about the solution with you.
JS500 Concrete Mixer
JS750 Concrete Mixer
JS1000 Concrete Mixer
JS1500 Concrete Mixer
JS2000 Concrete Mixer
JS3000 Concrete Mixer
JS3500 Concrete Mixer
JS4000 Concrete Mixer
Introduction
JS series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

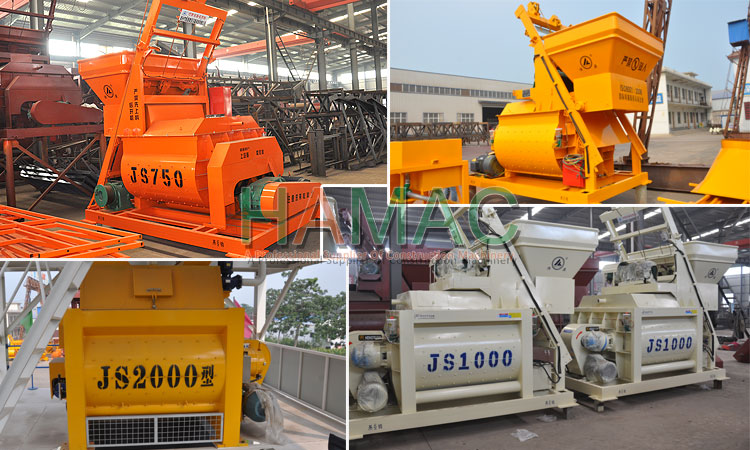

Detailed Photos
Performance
1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.
Specification
| Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS3500 | JS4000 | |
| Discharging volume (L) | 500L | 750L | 1000L | 1500L | 2000L | 3000L | 3500L | 4000L | |
| Feeding volume (L) | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | 5600L | 6400L | |
| Capacity | ≥25m³/h | ≥37.5m³/h | ≥50m³/h | ≥75m³/h | ≥100m³/h | ≥150m³/h | ≥180m³/h | ≥200m³/h | |
| Maximum aggregate size (pebble/gravel)mm | 40/50 | 40/60 | 60/80 | 80/100 | 80/100 | 80/120 | 80/120 | 80/120 | |
| Cycle time (S) | 72 | 72 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Total weight (kgs) | 4000 | 5500 | 8700 | 11300 | 15000 | 11450 | 12000 | 19000 | |
| Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
| Mixing blade | Rotary speed | 35r/min | 26r/min | 29.6r/min | 24.5r/min | 24.5r/min | 21r/min | 21r/min | 21r/min |
| Quantity | 2×7 | 2×7 | 2×8 | 2×8 | 2×8 | 2x10 | 2x10 | 2x11 | 2x12 |
| Mixing motor | Model | Y180M-4 | Y200L-4 | Y180M-4 | Y225M-6 | Y250M-6 | Y280M-6 | Y280M-6 | Y315S-6 |
| Power | 18.5kw | 30kw | 2x18.5kw | 2x30kw | 2X37kw | 2X55kw | 2X55kw | 2X55kw | |
| Hoist motor | Model | YEZ1325-4-B5 | YEZ132M-4-B5 | YEZ160L-4 | YEZ180L-4 | YEJ180L-4 | Y25M -4 | Y25M -4 | Y25M -4 |
| Power | 5.5KW | 7.5KW | 15KW | 18.5KW | 22KW | 2 × 55 kw | 2 ×55 kw | 2 × 75 kw | |
| Pump motor | Power | 1.1KW | 1.1KW | 3KW | 3KW | 4KW | 5KW | 5KW | 6KW |
Note: Specification is subject to change. Please refer to the machine for actual data.
