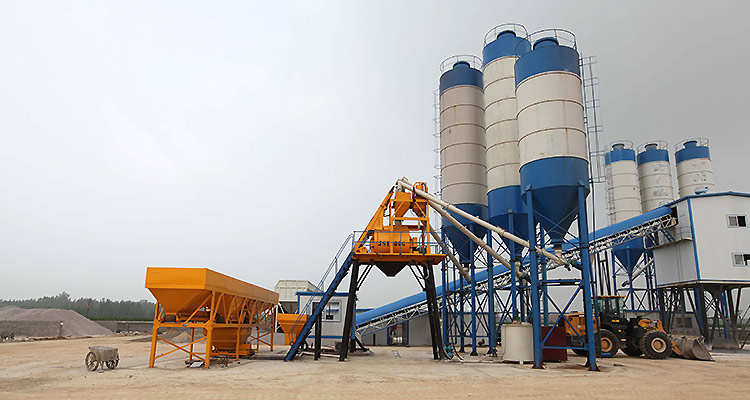

HZS50A Concrete batching plant is designed by HAMAC group, which adopts the advantages of various different concrete mixers and advanced technology. The complete plant includes aggregate batcher, aggregate transporting system, cement storage and transporting system, water and additive supplying system, weighting system, mixing system, electrical control system and pneumatic system etc. It is a fully automatic controlled concrete batching plant. Its structure is reasonable, performance is well and reliable, operated easily, weighing accurate. It is suitable for the various projects such as road, bridge, port, airport and dam etc.
Clients' Working Site
Global Case
HZS35 Small Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
HZS50 Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
HZS35 Concrete Batching Plant in NigeriaCOUNTRY : Nigeria
Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS1000B twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
| Model | HZS50A |
| Theoretic productive | 50m3/h |
| Concrete mixer | JS1000B |
| Maximum aggregate size | 80mm |
| The mixer power | 2X18.5KW |
| volume of mixing output | 1.0m3 |
| aggregate transporting way | elevator bucket |
| aggregate weighing | 3000Kg ±2% |
| cement weighing | 600Kg ±1% |
| Water weighing | 400Kg ±1% |
| Loading height | 2.58 |
| discharging height | 2.7m/3.8m |
| Total power | 85KW |
| total weight |
14.87t(discharging height 2.7m ) 17.57t(discharging height3.8m ) |
| Overall dimension (working condition: LXWXH) |
10867mm×4070mm×6560mm(discharging height 2.7m ) 17012mm×4070mm×8400mm(discharging height 3.8m ) |
| Control mode | Semi automatic burdening, manual operation |
| silo (optional) | As client request, the quantity and volume is optional. |
| screw conveyor (optional) | One φ219 screw conveyor for each silo |
