YHZS50 concrete batching plant is kind of Mobile Concrete Mixing Plant developed by HAMAC Group, based on the advantage of many models in China and overseas and the advanced technology, combing the experience of HAMAC Group in the past years. The batching unit, aggregate conveying unit, water supplying and additive agent supplying system, scaling system, mixing system, electrical control system and pneumatic system are centralized in one trailerized chassis. It has the feature of instant trailing, instant stop, reasonable structure, well function, reliable working, convenient operation, accurate scale, particularly suitable for moving sites and construction site like road, bridge, dam, airport.

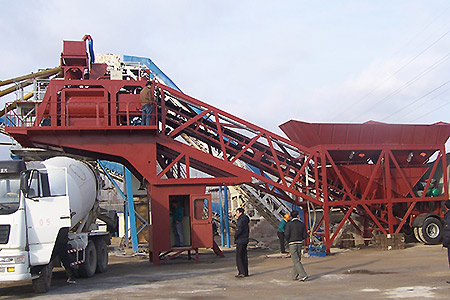

Clients' Working Site

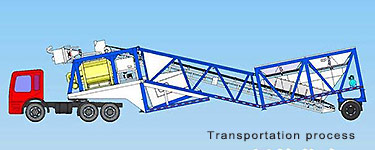

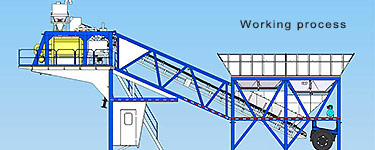

This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
Global Case
HZS35 Small Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
HZS35 Concrete Batching Plant in NigeriaCOUNTRY : Nigeria
HZS50 Concrete Batching Plant in IndonesiaCOUNTRY : Indonesia
Advantage
1. Adopting module structure, designed as per the loading of container standard. All modules are in one trailing unit. Easy for installation and disassembly. Fast for moving.
2. Main mixing unit is JS1000 double-shaft, forced concrete mixing mixer, with good mixing quality, high production efficiency. Perfect mixing can be done within ideal time period for dry-hard, half-dry-hard, plastic and concrete with any mixing ratio.
3. All scaling elements and control elements of scaling unit are imported elements and controlled by computer, guaranteeing completely accurate scale and stable function.
4. Platform or ladder is equipped to each part needing maintenance and repairing. Good for maintenance.
5. The whole system adopts complete automatic system via computer, with dynamic panel display, to show clearly of the running of each part. Visualized monitor interface provides clear and accurate observing to the site working procedure. Table or list can be print out.
6. Electrical control system adopts import elements, providing a stable and powerful function. Automatic test for the abnormal working condition, Word, sound, light alarm, easy and good for the maintenance and trouble shooting.
Specification
|
1. MIXING SYSTEM Twin Shaft Concrete Mixer: JS1000 Volume: 1600 L Capacity: 1000 L Paddle quantity: 2*8 pieces Paddle Speed: 25.5 r/min Mixing Motor: 2*18.5kw |
2. CONTROL SYSTEM: PLC command and control operation Main electrical components: Schneider 17colorful computer Manuel and Auto Control is freely changeable |
|
3. AGGREGATE SYSTEM 3.1.1Aggregate Batcher PLD1600 Volume: 4×8m3=32 Sort of aggregate: 4 Capacity: 80 m3/h Power: 11 kw Sand vibrator: 0.37kw×2 3.2. Aggregate Belt Conveyor 1 unit Width:800 mm Length: 18456mm Speed: 1.6 m/s Motor: 7.5 kw |
4. WEIGHING SYSTEM: 4.1 Aggregate weighing 1 unit Weighing Capacity: 1.6 m3Precision: ±2% 4.2 Cement weighing 1 unit Weighing Capacity: 1m3 Precision: ±1% 4.3 Water Weighing 1 unit Weighing Capacity: 150 kg Precision: ±1% 4.4 Additive Weighing 1 unit Weighing Capacity: 40 kg Precision: ±1% |
|
5. CEMENT SYSTEM Cement Silo: 30 Ton Cement Screw Feeder: 2 units Diameter: Φ219mm Length: 11.8 m |
6. ADDITIVE SYSTEM Additive silo capacity: 1 m3 Pneumatic valve: Φ50 mm Pump: 3kw |
|
7. WATER SYSTEM Submersible pump: 3kw Water pump: 0.75kw Water tank: 3 m3 |
8. AIR SYSTEM Air Compressor: 1 unit Power: 7.5kw Pressure: 0.7Mpa Airflow: 0.8 m3/min |
