Introduction

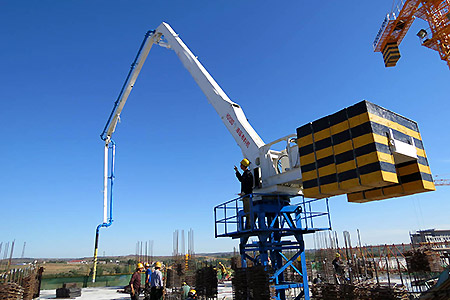

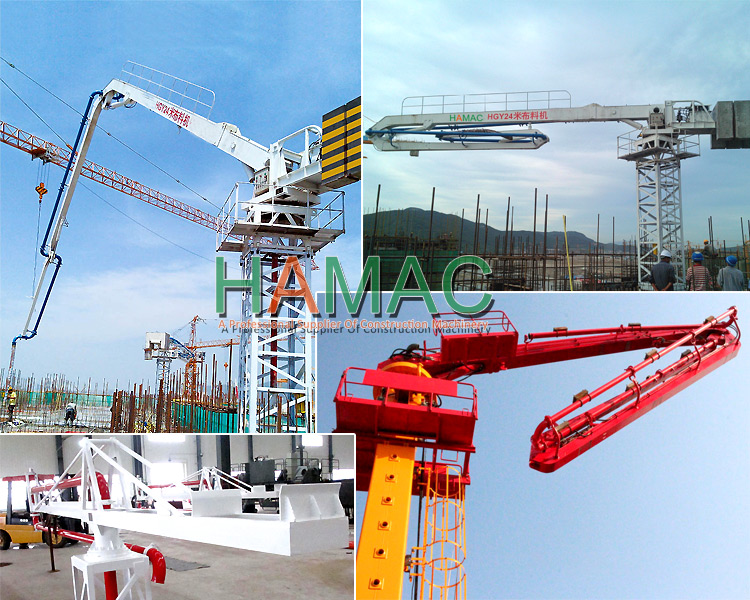

Climbing-type concrete placing boom is used for concrete construction in high-rise buildings. Distributing machine, equipped with automatic climbing mechanism, is fixed within the elevator shaft; it climbs automatically through hydraulic cylinder jacking and elevates with the increasing of storey, increasing the efficiency by saving both time and effort.
Concrete placing boom is end equipment for pumping concrete, which is used for pouring concrete pumped by pipe into the template of construction components.
Performance
1. It can be placed according to needs of field pouring.
2. Compact structure, light weight, and can be hoisted and transported as a whole.
3. Flexible, widely use and applicable for complex construction site.
4. Easy operation, safe and reliable, economical and practical.
Specification
| Item | HGY13D | HGY15D | HGY17D | HGY18D | HGY21D | HGY24D | HGY28D | HGY32D |
|
Max. placing radius (m) |
13 | 15 | 17 | 18 | 21 | 24 | 27.5 | 32 |
| Big arm length (m) | 3.7 | 6 | 6.66 | 7.66 | 11 | 12 | 12.6 | 14.5 |
| Big arm elevation (°) | -2-84.4 | 0-70 | 0-65 | 0-65 | 0-65 | 0-65 | 0-65 | 0-65 |
| Medium arm length (m) | 4.52 | 5 | 5.73 | 5.73 | 6.5 | 7.5 | 8.8 | 9.2 |
|
Medium arm elevation (°) |
0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 |
| Small arm length (m) | 4.78 | 4 | 4.61 | 4.61 | 3.5 | 4.5 | 6.1 | 8 |
| Small arm elevation (°) | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 | 0-180 |
| Hose length (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
|
Concrete delivery pipe (mm) |
ø125×6 | ø125×6 | ø125×6 | ø125×6 | ø125×6 | ø125×6 | ø125×6 | ø125×6 |
| Tail Rotary radius (m) | 2.72 | 2.81 | 3.51 | 3.93 | 3.9 | 3.9 | 3.9 | - |
| Total Power (Kw) | 4 | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 15 |
| System Pressure (Mpa) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Rotary speed (r/min) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 |
| Rotary range (°) | 0-360 | 0-360 | 0-360 | 0-360 | 0-360 | 0-360 | 0-360 | 0-360 |
| Lifting speed (m/min) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Lifting height(m/time) | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 | ≤3.6 |
| Overall height (m) | 12.8 | 12.8 | 12.8 | 12.8 | 13.3 | 13.3 | 12.6 | 22.9 |
| Bare machine weight (kg) | 3700 | 4500 | 6000 | 7500 | 8400 | 9500 | 10720 | 16700 |
| Balance weight(kg) | 2×900 | 2×1100 | 2200 | 2×1100 | 3×2000 | 3×2000 | 4×2000 | - |
| Control mode | Panel/Wireless remote control | |||||||
