Introduction

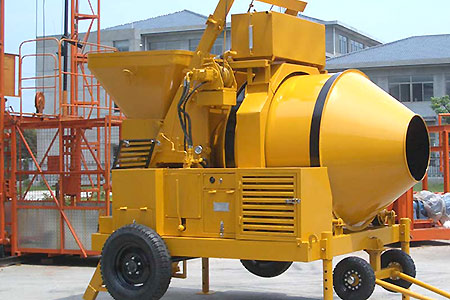

JZR series diesel concrete mixer is driven by diesel engine. There are two feeding modes: climbing bucket feeding and dump hopper feeding. JZR series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy.

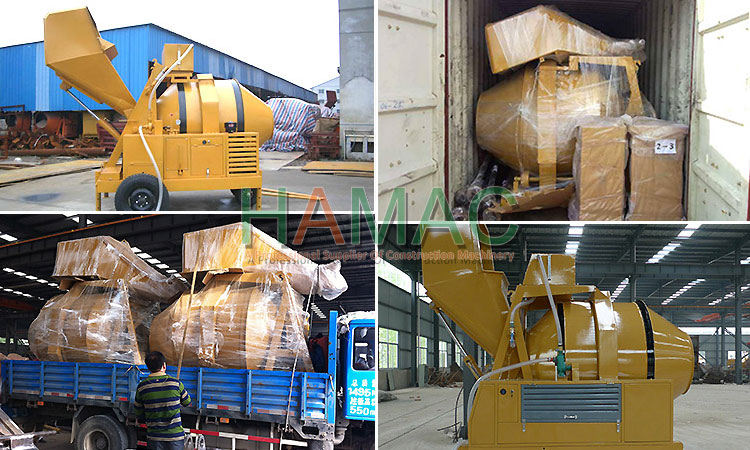

Detailed Photos
Performance
1. Diesel engine, especially suitable for the areas thatwithout electricity.
2. Can be easily moved between different construction sites.
3. Easy operation; stable performance; Low energy consumption.
4. Reasonable structure, higher reliability, mixing evenly with high productivity.
Specification
| Model | JZR350DW | JZR350DH | JZR500DH |
| Discharging Capacity(L) | 350 | 350 | 500 |
| Charging Capacity(L) | 560 | 560 | 800 |
| Productivity(m3/h) | 10-14 | 10-14 | 20-22 |
|
Maximum Size of Aggregate(mm) |
60 | 60 | 80 |
| Hopper Lifting | Hydraulic system | Hydraulic system | Hydraulic system |
| Diesel Engine Power(kw) | 13.2 | 13.2 | 16.2 |
| Power of Water Pump(kw) | 0.75 | 0.75 | 2.2-3 |
| Accuracy of Water Supply | Error≤2﹪ | Error≤2﹪ | Error≤2﹪ |
|
Dimensions in Container (mm) |
2750×2200×2400 | 2300×1900×2500 | 2300×3300×2500 |
| Overall Weight (kg) | 1350 | 1400 | 2300 |
Note: Any change of technical data should not advise additionally.
