Introduction

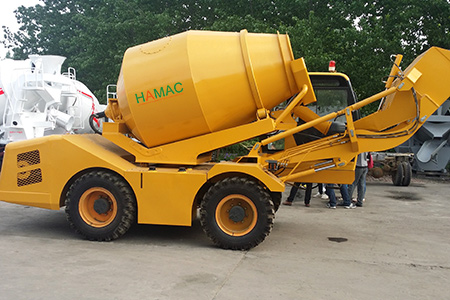

Self-loading mobile concrete mixer is an equipment combined with concrete mixer truck and concrete mixing station. Raw material loading, weighting, mixing and discharging all rolled into one. It could not only be used to transport the concrete but also produce the concrete at site.
Detailed Photos
Performance
Load: Because of the specially designed hinge type hydraulic shovel, this mixer can load the material easily and accurately. There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement. All the ingredient can be fed into the mixing barrel from the top of shovel;
Mixing : After the aggregate and cement are fed into the mixing barrel, they will be mixed with the pressed water from the double water tanks which are on the truck. The specially designed double screw to confirm the quality of concrete (if required, we can equip the electronic weighing system)
Transport: This mixer is fit for any working site because of its 4 wheel hydraulic drive system and favorable configuration. It can crawl on the 30 degree slope at a full load situation;
Discharging: Adopt the revolutionary solution. The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height, 4 directions.
Operation: There is a well appointed cab. The driver can operate almost all the actions through a handle shank.
Safety: This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.
Specification
HMC 350 Self-loading Mobile Concrete Mixer:
| Name | Item | Specification | Name | Item | specification | ||
| Vehicle | Net weight | 7500 KGS | Diesel engine | Type | 4BT3.9- C 110 | ||
| Gross weight | 15000 KGS | Rated power/rpm | 110kW/2200rpm | ||||
| Driving mode | Hydraulic drive | Max. torque/rpm | 460 N.m/1400rpm | ||||
| 4x4 drive | |||||||
| Brake mode | Hydraulic brake | Cylinder | 4 cyliners/3.9L | ||||
|
Front and rear independent system |
Bores | 102mm | |||||
| Cooling type | Water cooling | ||||||
| chassis | Off-road, YTO Axle | Fuel consumption | 207kg/kW.h | ||||
| Distance of front/rear wheel base | 1905mm | Starter | Electric | ||||
| Wheel base | 2155mm | Displacement standard | China II | ||||
| Loader | Capacity | 0.6m³ | Mixer | Drum capacity | 3.5m³, 14 m³/h | ||
| Control | Hydraulic | Slope degree | 16 | ||||
| Climbing capacity | 30 degree | Rotation speed | 10-16r/min | ||||
| Speed | High | 0-20km/h | Angle of drum rotation | ≥270º | |||
| Low | 0-9km/h |
Discharging chute |
Swing angle | ≥60º | |||
| Min. turning radius | 6.5m/R | Angle control | Hydraulic | ||||
| Tire type | 16/70-20 | Size (optional) | Long: 106cm | ||||
| Dimension (L*W*H) | 7011*2441*3310(mm) | Short: 40cm | |||||
HMC150 Self-loading Mobile Concrete Mixer:
| Items | Data | ||
| Model | HMC150 | ||
| Chassis series No. | HAMAC1.5-2000 | ||
| Performance | Movable, self-loading, mixing, transporting | ||
| Function & usage | Mix Wet/dry concrete, motar, compound fertilizer and other wet/dry materials and deliver it to the destination | ||
| Drive way | Full hydraulic, two-wheels drive | ||
| Turning direction | Front-wheel steering | ||
| Mixing Tank | Geometric volume is 2.6m3, mixing volume is 1.5m3 | ||
| Spiral blade in the tank | Double helix stirring, equipped with spiral structure to make the concrete more uniform; left direction rotate is mixing, right direction rotate is discharging | ||
| Discharge height | Standard discharge height is 0.8m, specially order is acceptable | ||
| Incline angle of mixing tank | 16 degree | ||
| Wheel base | 2380mm | ||
| Productivity | 1.5m3 per batch, 6m3 per hour | ||
| Engine | Weichai Huafeng 83kW | ||
| Speed | 0-17km/H | ||
| Operation lever | Electronically controlled four directions, guide button installed on the handle | ||
| Hydraulic driven running system | Open type triple pump | ||
| Hydraulic motor LF080 (Germany Rexroth) | |||
| Speed reducer FX00300 | |||
| Water supply | self-prime pump type water pump | Tire type | 750-16 |
| Shovel volume | 250L | Battery | 24V, 200A, two pieces |
| Shovel discharge | Hydraulic valve, electronically controlled | Weight | Empty weight is 5000KGS, if full load, the weight is 8680KGS. |
| Discharging chute | Angle adjustable, equipped with two pieces dismountable assistant discharging chutes in order to expand the discharging length, | ||
| Hydraulic oil tank | Volume is 120L, 68# hydraulic oil shall be used in summer, 46# hydraulic oil shall be used in winter, 35# hydraulic oil shall be used in very cold area. Level gauge is equipped; | ||
| Water tank volume | 340L | Diesel tank volume | 150L |
| Overall dimension | 5220*2290*3320mm | ||
